Tensile Testing

Tensile Testing

Device

Tensile tester- Tensile Testing Machine 3342 / Instron

Expected Result

The system provides comprehensive mechanical data supporting industries such as automotive and packaging, where materials must meet specific strength and flexibility standards. It enables detailed analysis of material behavior facilitating quality control and product development.

Method

The tester applies controlled forces to a material sample, recording its response to stretching, compression, or tearing and allows testing according to many norms (DIN, ISO). Besides, friction testing and tuck testing of adhesives can be done.

Case Study

On mixing various components the mechanical strength of an acrylic resin is changed. While this is already observed by simple touching, the tensile tester allows to yield exact physical values on the compression modulus and elastic modulus. On application in between two flexible sheets this resin acts also as a glue. Using the tensile tester a tuck test can help optimizing the resin composition to achieve highest adhesion.

Tensile tester- Tensile Testing Machine 3342 / Instron

The tensile testing machine enables precise measurement of tensile strength, elongation and modulus of elasticity of a wide range of materials in research, development and quality control.

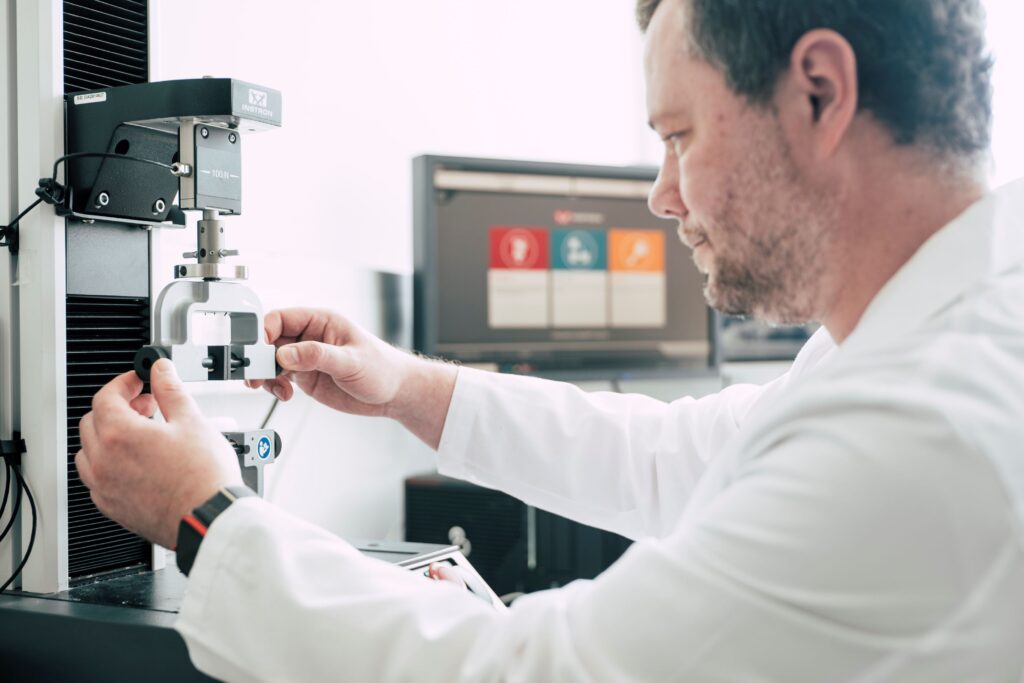

Tensile tester, credit: JOANNEUM RESEARCH /Bergmann

Specifications

  • Sample size: 2 cm – 50 cm length
  • Testing speed range: 0.05 to 1000 mm/min
  • Load Cell max load: ±100 N
  • Additional Accessory
    • Coefficient of Friction Fixture
    • 90 Degree Angle Peel Fixture
